E09C Smart AI Glasses 8MP Camera 1080P Video AI Object Recognition Voice Control for Remote Meeting

AI Smart Assistant

Supports AI object recognition and visual large models to identify items, cars, and food cries via voice commands.

1080P Video Recording

Features an 8MP camera with EIS anti-shake technology for clear first-person perspective video and photo capture.

Real Time Translation

Provides simultaneous interpretation and digue translation functions for seamless cross-language communication during travel or business meetings.

Touch And Voice Control

Allows music playback, volume adjustment, and photo taking through touch gestures or voice wake-up commands.

WiFi Data Transfer

Enables fast wireless transmission of photos, videos, and audio recordings to your smartphone via dual-band WiFi connection.

Product Details

Specifications

Mechanical

Lens

Touch-sensitive color-changing (four-tone color adjustment)

Frame

PC+ABS

Temple

PC+ABS

Button

Rust color with metallic paint

Product Details

Net weight

40g

Hardware

Platform

DH98562+JL7018F

Storage

8GB (expandable)

DDR

DDR3 1G

FLASH

Product Details

128M BIT

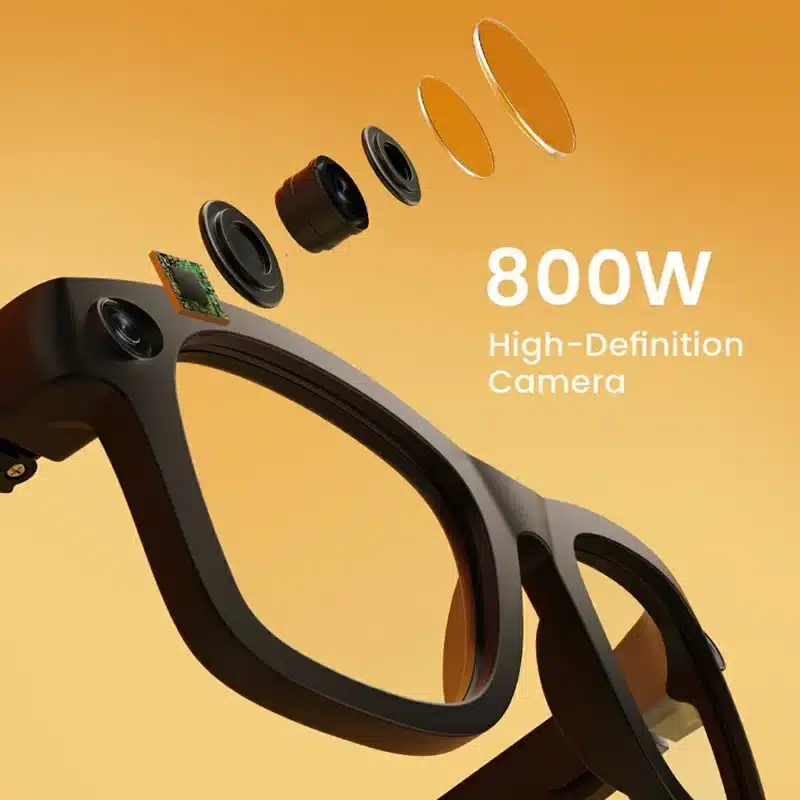

Camera

for SONY IMX219 800MP

Image Stabilization

Software anti-shake

Physical Button

1 button for photo / video / audio recording / power on/off

Touch Button

Touch FPC for audio functions (play / pause / previous / next / volume + / volume -)

Wear Detection

Product Details

Supported

Speaker

Dual speakers AAC0820

MIC

Array 3MIC / 2718 package, 38dB ±1dB

Charging Method

Type-C

Data Transfer (Photos

Videos

Recordings)

Product Details

WIFI transmission

Indicator Lights

2 pcs (status indicator – tri-color light / recording indicator – white light)

Battery

481152 high-rate battery, 290mAh, supports air / sea / MSDS certification

Function

Language Support

VAD Language (Standard)

Chinese & English

Button Definition

Product Details

Power on/off

Long press 3s to power on / 5s to power off

Take photo

Short press

Video recording

Double-click to start, short press to stop

Audio recording

Triple-click to start, short press to stop

Force restart

Long press 10s

Product Details

Auto power off

If not connected to APP, auto power off in 3min

if BT disconnected, auto power off in 2min

Status Indicator

Not connected

Blue light flashing until connected

Connected

Blue light stops flashing

Power off

Red light flashes twice

Product Details

Charging

Red light on during charging, off when fully charged

Shooting indicator light

Photo capture

White light flashes once per shot

Audio recording

White privacy light breathing, green status light flashing

Video recording

White privacy light breathing, white status light flashing

Touchpad

Product Details

Play / Pause music

Double-click the touch area to skip to the next track

triple-click the touch area to return to the previous track.

Adjust volume

The forward slide controls high volume, the backward slide controls low volume

Switch to the next song

Double-click the touch area to skip to the next track

triple-click the touch area to return to the previous track.

Volume Up

Swipe forward in the touch area to increase volume

Product Details

Volume Down

Swiping backward in the touch area reduces the volume

Photography Features

① First-time startup without connection: Button-based photography, audio recording, and video recording are not supported.

② During disconnection: Photography, audio recording, and video recording are available

data sync resumes upon reconnection.

③ Video/Audio Recording: · Auto-save upon start/end or when memory is full · Set recording duration via the

app (1min, 3min, 5min, 7min, 10min) · Sync via app · No recording/video recording allowed when battery below

10%.

Battery Power

Product Details

·The device will automatically shut down when battery level reaches 0%.

·A low battery warning will appear when the battery level drops to 5%.

·In shutdown mode, the charging device will automatically power on and enter charging mode

it will shut down automatically after full charging.

·OTA: Upgrades are available when battery level is ≥10%

the low battery warning is displayed on the app.

Voice Wakeup

①Voice timbre: Mature female voice

②Voice wake-up: 'Hi, luma' to activate the voice assistant

③AI features require app connection

Product Details

Photography: Take a photo

Other: What time is it now?

How's the weather?

AI

①Prerequisites: · Be in an active state · Maintain connection between the glasses and the app

②Large model capabilities – Ask questions to the large model anytime: · What's the weather like today?·Can you

tell me some facts about red wine?·Can you tell me a joke?③ Visual Large Model – Let AI

see what you see: · Describe the objects in front of me · Take a photo and identify

what kind of car this is?· Can you tell me how many calories this burger contains?

warning tone

Product Details

Power on, power off, connect, disconnect, wear, take photos, record video, record audio, use the touchpad, charge, low

battery, maximum volume

AI model

OPEN AI

Simultaneous Interpretation

Supported

Conversation Translation

Supported

Meeting Minutes

Supported

Product Details

Audio & Video Call

Supported

Environmental

Operating Temperature

0℃ to 55℃

Charging Temperature

（0℃ to 40℃）+-3℃

Operating Humidity

10%–90% RH (non-condensing)

Storage Temperature

Product Details

Storage temperature shall be subject to the battery storage temperature

the board components can support the corresponding temperature range.

Storage Humidity

5%–90% RH (non-condensing)
